plug-n-play manhattan

this is a collection of breakout boards to make manhattan style prototyping with select components and modules easier. as they are manhattan oriented, they are intended to be glued down on bare copperclad fr4 and soldered on surface mount pads.

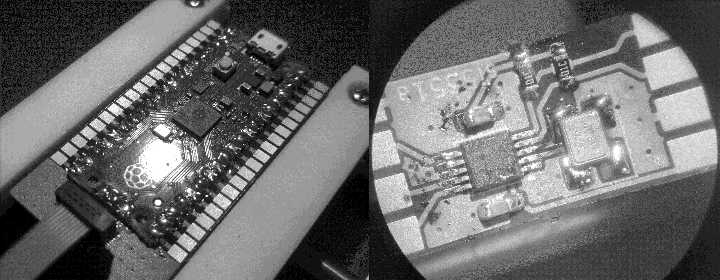

examples from the collection (actually, the only ones at the time of writing). left is a pi pico 2 on one of these boards, supported in the jaws of a stickvise, with a ribbon cable attached to the debug header (the one used for the black magic probe). right is an si5351a and supporting components under a microscope. pardon my poor soldering, this was my first go at SMD work.

these are distributed as kicad project files, from which you can generate the gerbers to submit to a fab, or just submit the project files themselves to fabs which support those such as oshpark.

git clone https://git.sr.ht/~kestrel/pnp_manhattan

pnp_manhattan on sr.ht
